| 起源の場所: | 浙江省、中国 |
|---|---|
| ブランド名: | Factory, OEM / ODM |
| 証明: | CE, ROHS, REACH, IP68 |
| モデル番号: | SSCGシリーズ |
| 最小注文数量: | 200個 |
| 価格: | factory direct sales |
| パッケージの詳細: | 標準包装 (特別包装もご要望により利用可能) |
| 受渡し時間: | 通常9〜14日 |
| 支払条件: | T/T、L/C、ウェスタンユニオン |
| 供給の能力: | 1ヶ月あたりの500,000部分 |
| 材料: | ステンレス鋼 SS304,SS316,SS316L | プラスチックインサート: | UL 認定ポリアミド 6 (ポリアミド 6.6) |
|---|---|---|---|
| 密封の部品: | 耐油NBR（EPDM、FKM/FPM、シリコーンゴム） | 可燃性: | UL94 V-2 |
| 糸: | EN 60423規格に準拠 | 防水性: | IP68 評価 |
| 仕様: | M12×1.5～M50×1.5 | 機能: | ケーブル が 壊れ ない よう に 過剰 に 曲がる こと を 防ぐ |
Description & Application:

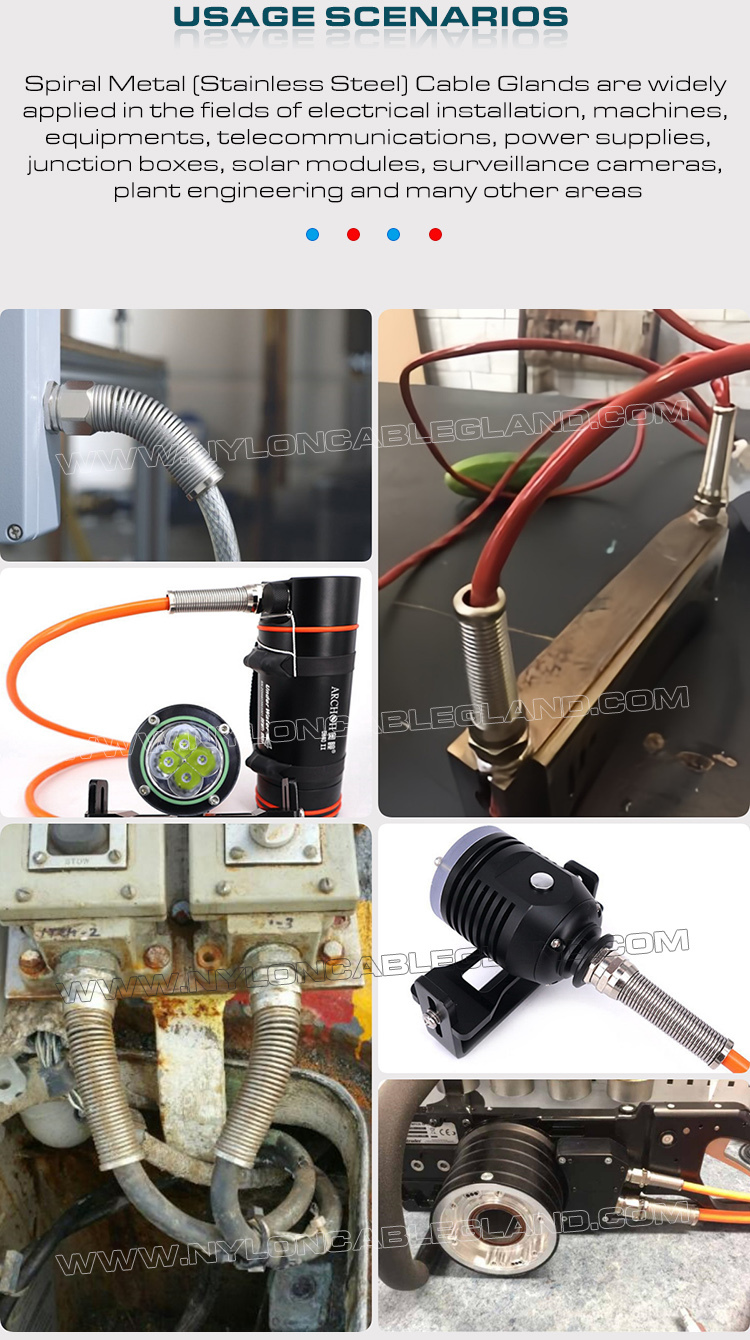

► Industrial Automation Equipment: In robots, automated production lines, CNC machine tools, and other equipment, cables need to move and bend frequently with the equipment. Anti-bend connectors effectively protect cable connection points.
► Outdoor and Humid Environments: Suitable for streetlights, lighthouses, yachts, and equipment exposed to rain or soil. Stainless steel offers excellent waterproof, dustproof, and corrosion-resistant (salt-resistant, acid and alkali-resistant) properties.
► Handheld Power Tools and Welding Equipment: Using anti-bend connectors at power cord leads in welding machines and other applications requiring frequent plugging, unplugging, and dragging can significantly extend cable life and prevent fatigue breakage.
► Medical Devices and Marine Industry: High-grade materials such as 316 stainless steel have strong waterproof and rust-proof capabilities and are commonly used for connections in medical devices and equipment used in marine environments.
► New Energy Industry: Cable connectors with high protective and bending resistance are also required in some servo motor control cabinets and new energy equipment.
| Brand name: | Factory or OEM |
| Place of origin: | China |
| Specs: | M12x1.5 ~ M50x1.5 |

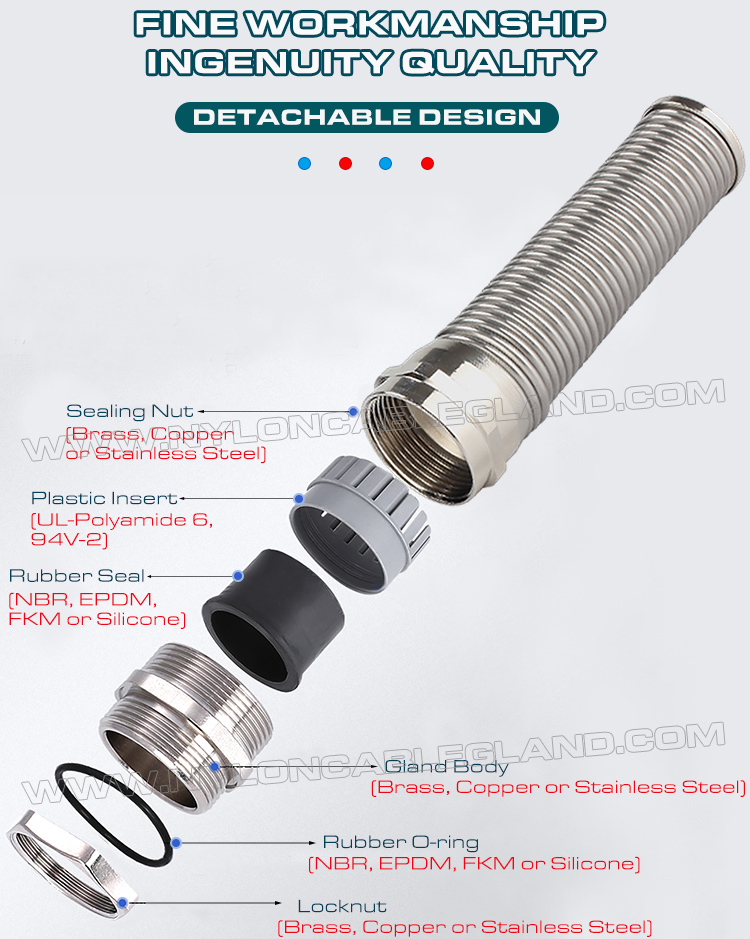

| Material: | Metallic parts are made from stainless steel 304, 316, 316L |
| Plastic insert is made from UL-polyamide 6, 94V-2 | |
| Sealing parts are made in NBR, EPDM, Silicone or FKM / FPM | |
| Surface: | Polishing threatment |
| Color: | Silver gray |
| Certification: | CE, ROHS, REACH, IP68 |
| Waterproofness: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Standard length (other lengths can be customized) |
| Thread type: | According to the standard EN 60423 |
| Working temperature: |
Static: -40 ℃ to +100 ℃, short-term: +120 ℃. Dynamic: -20 ℃ to +80 ℃, short-term: +100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 500,000 pieces per month |
| Minimum quantity: | 200 pieces |
| Sample available: | Free samples are available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packaging: |
(1) 100 pieces per bag or 50 pieces per bag (2) special packaging can be customized as requested |
